Home > Product Introduction > Brushless motors > C10-169

Brushless motors - C10-169

Brushless motors C10-169

List of products in the same category

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C10-169-01	10	16.9	7.4	-	29000	170	1321	2.44	41.1	1.86
	Customizable Items	Lead pin Grounding terminal

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C10-169-02	10	16.9	7.4	-	21300	103	890	2.31	43.5	1.29
	Customizable Items	Lead pin Grounding terminal

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C10-169-03	10	16.9	7.4	-	17100	77	580	1.80	40.4	0.808
	Customizable Items	Lead pin Grounding terminal

C10-169-01 Product Details

C10-169-01

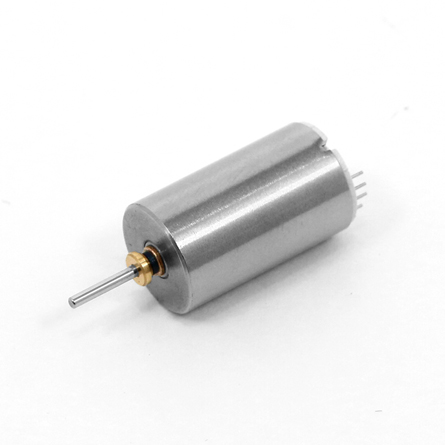

Image 1 of C10-169-01

Image 2 of C10-169-01

Click to enlarge

Product Specifications

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
C10-169-01	10	16.9	7.4	-	29000	170	1321	2.44	41.1	1.86

Customizable Items

Lead pin Grounding terminal

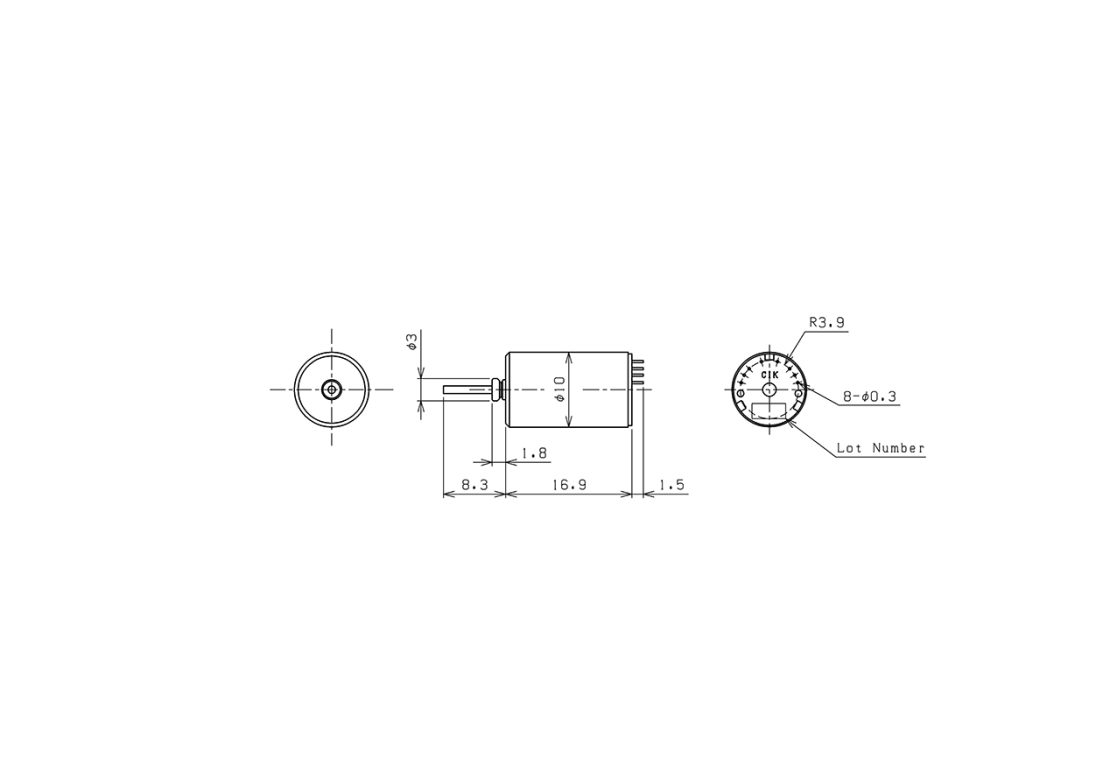

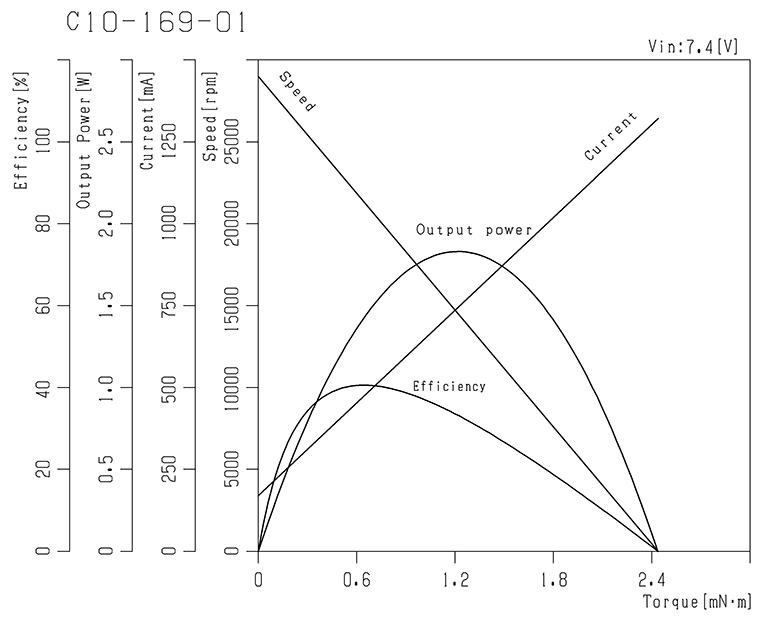

Outline Drawing / Characteristic Diagram / CAD Data Download

Outline Drawing Characteristic Diagram CAD Data

Catalog Download

◀ For those who want to see catalog materials including this product

◀ For those who want to inquire directly about product details, samples, etc.

C10-169-02 Product Details

C10-169-02

Image 1 of C10-169-02

Image 2 of C10-169-02

Click to enlarge

Product Specifications

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
C10-169-02	10	16.9	7.4	-	21300	103	890	2.31	43.5	1.29

Customizable Items

Lead pin Grounding terminal

Outline Drawing / Characteristic Diagram / CAD Data Download

Outline Drawing Characteristic Diagram CAD Data

Catalog Download

◀ For those who want to see catalog materials including this product

◀ For those who want to inquire directly about product details, samples, etc.

C10-169-03 Product Details

C10-169-03

Image 1 of C10-169-03

Image 2 of C10-169-03

Click to enlarge

Product Specifications

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
C10-169-03	10	16.9	7.4	-	17100	77	580	1.80	40.4	0.808

Customizable Items

Lead pin Grounding terminal

Outline Drawing / Characteristic Diagram / CAD Data Download

Outline Drawing Characteristic Diagram CAD Data

Catalog Download

◀ For those who want to see catalog materials including this product

◀ For those who want to inquire directly about product details, samples, etc.

Brushless motors Product List

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C10-169-01	10	16.9	7.4	-	29000	170	1321	2.44	41.1	1.86
	Customizable Items	Lead pin Grounding terminal

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C10-169-02	10	16.9	7.4	-	21300	103	890	2.31	43.5	1.29
	Customizable Items	Lead pin Grounding terminal

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C10-169-03	10	16.9	7.4	-	17100	77	580	1.80	40.4	0.808
	Customizable Items	Lead pin Grounding terminal

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C10-200-01	10	20.0	7.4	-	26200	165	1542	3.32	45.3	2.28
	Customizable Items	Lead pin Grounding terminal

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C10-200-02	10	20.0	7.4	-	27100	152	2133	4.80	53.7	3.40
	Customizable Items	Lead pin Grounding terminal

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C10-200-03	10	20.0	7.4	-	17200	89	754	2.41	43.1	1.08
	Customizable Items	Lead pin Grounding terminal

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C12-135-01	12	13.5	12.0	-	29900	170	828	2.00	29.9	1.57
	Customizable Items	Lead pin Grounding terminal Gear head

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C12-135-02	12	13.5	12.0	-	26100	90	545	1.67	35.3	1.14
	Customizable Items	Lead pin Grounding terminal Gear head

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C12-135-03	12	13.5	12.0	-	23200	85	463	1.53	32.7	0.927
	Customizable Items	Lead pin Grounding terminal Gear head

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C12-175-01	12	17.5	12.0	-	30000	140	2139	7.14	55.4	5.61
	Customizable Items	Lead pin Grounding terminal Gear head

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C12-175-02	12	17.5	12.0	-	20400	97	1071	4.98	48.9	2.66
	Customizable Items	Lead pin Grounding terminal Gear head

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C12-175-03	12	17.5	12.0	-	14700	77	486	2.68	36.2	1.03
	Customizable Items	Lead pin Grounding terminal Gear head

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C13-135-01	13	13.5	3.0	-	4600	22	224	1.15	47.1	0.137
	Customizable Items	Grounding terminal Ball bearing

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C17-130-01	17.4	13.0	4.8	-	17000	145	2667	6.43	58.8	2.86
	Customizable Items	Lead pin Grounding terminal Gear head

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C17-130-02	17.4	13.0	4.8	-	25000	217	4848	8.11	62.2	5.31
	Customizable Items	Lead pin Grounding terminal Gear head

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C17-130-03	17.4	13.0	4.8	-	11700	86	804	2.51	45.3	0.770
	Customizable Items	Lead pin Grounding terminal Gear head

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C17-156-01	17.4	15.6	6.8	-	27200	200	5667	12.6	66.0	8.97
	Customizable Items	Lead pin Grounding terminal Gear head

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C17-156-02	17.4	15.6	6.8	-	17100	113	3400	12.1	66.9	5.40
	Customizable Items	Lead pin Grounding terminal Gear head

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C17-156-03	17.4	15.6	6.8	-	11100	75	866	4.23	49.8	1.23
	Customizable Items	Lead pin Grounding terminal Gear head

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C17-179-01	17.4	17.9	7.4	-	18100	140	2216	7.59	56.0	3.60
	Customizable Items	Lead pin Grounding terminal Gear head

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C17-179-02	17.4	17.9	12.0	-	18100	137	3117	18.0	62.5	8.55
	Customizable Items	Lead pin Grounding terminal Gear head

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C17-179-03	17.4	17.9	7.4	-	31800	192	5873	12.2	67.1	10.2
	Customizable Items	Lead pin Grounding terminal Gear head

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C17-179-04	17.4	17.9	7.4	-	12300	70	946	4.66	53.0	1.50
	Customizable Items	Lead pin Grounding terminal Gear head

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C17-179-05	17.4	17.9	12.0	-	31000	168	7742	27.4	72.7	22.2
	Customizable Items	Lead pin Grounding terminal Gear head

	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
	Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
	C17-179-06	17.4	17.9	12.0	-	12800	72	1364	11.0	59.3	3.67
	Customizable Items	Lead pin Grounding terminal Gear head
