Use Cases - Medical care

Coreless motors are used in the medical field, where high reliability is required, because they are cogging-free and highly responsive.

In the medical field, where high precision work is required, cogging torque, which reduces precision, does not occur.

To enable shorter work times and rapid responses, this reduces the burden on operators and improves patient safety.

We use materials with proven conductivity and environmental resistance in the electrical contact parts.

Main Areas of Use

It is used for the function of rotating the drill at the tip.

| Products Used A12C-30

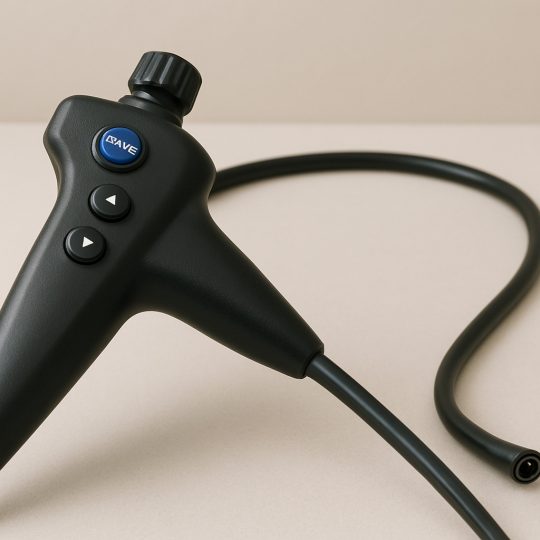

It is used for the function of zooming the endoscope's camera.

| Products Used A6B-19

Analytical instruments, pumps, electronic pipettes

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Inter-terminal resistance [Ω]	Rotation Speed [r/m]	Electric Current [mA]	Electric Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Inter-terminal resistance [Ω]	No load		Startup		Maximum		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
A12C-30	12.4	21.5	3.7	0.94	20,200	40	3,936	6.75	80.9	3.57
Items We Can Handle	Gear head Lead pin Lead wire Grounding terminal

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Inter-terminal resistance [Ω]	Rotation Speed [r/m]	Electric Current [mA]	Electric Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Inter-terminal resistance [Ω]	No load		Startup		Maximum		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
A6B-19	6.0	12.0	1.3	14.0	9,800	18	93	0.076	31.3	0.02
Items We Can Handle	Lead wire
