A6-120
Available items
A6-120-01
| Part number | Diameter | Length | Voltage | No-load speed | No-load current | Stall current | Armature resistance | Stall torque | Max. efficiency | Max. output |
| ［mm］ | ［mm］ | ［V］ | ［rpm］ | ［mA］ | ［mA］ | ［Ω］ | ［mNm］ | ［％］ | ［W］ | |
| A6-120-01 | φ6 | 12.0 | 1.3 | 9,000 | 20 | 93 | 14.0 | 0.0789 | 28.7 | 0.0186 |

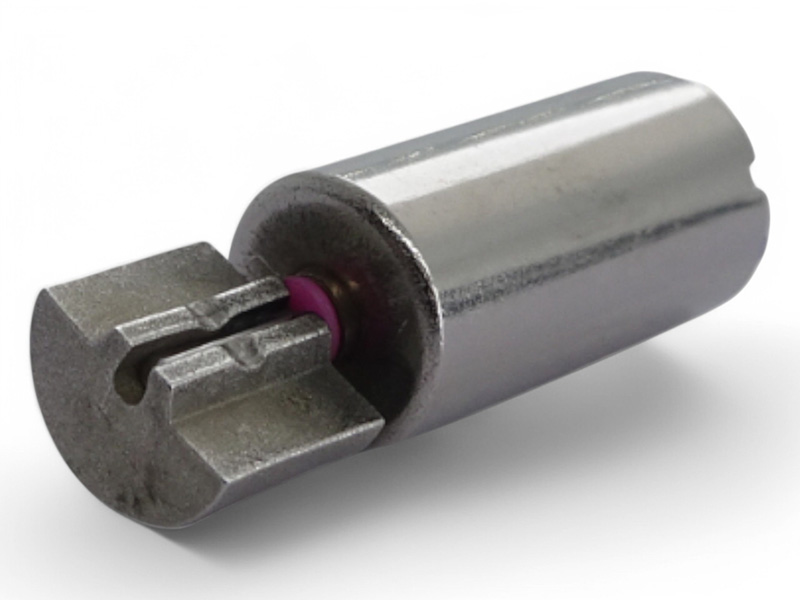

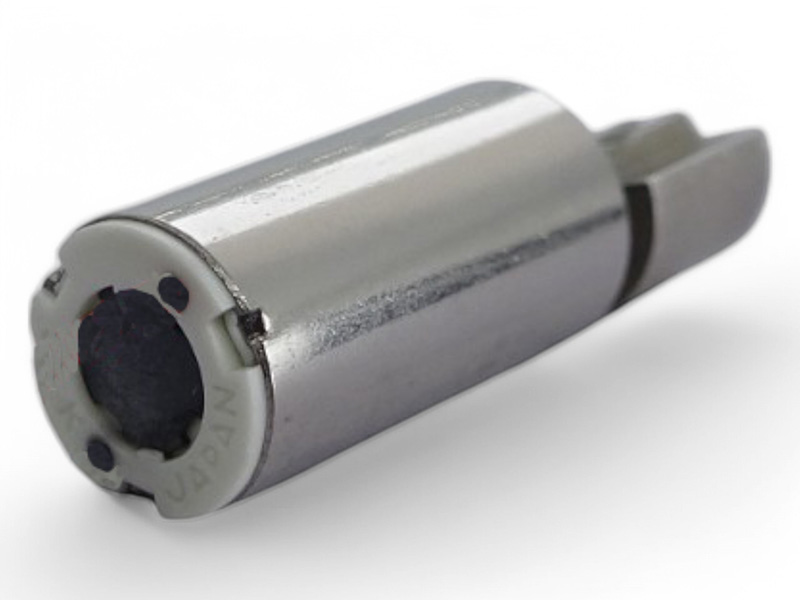

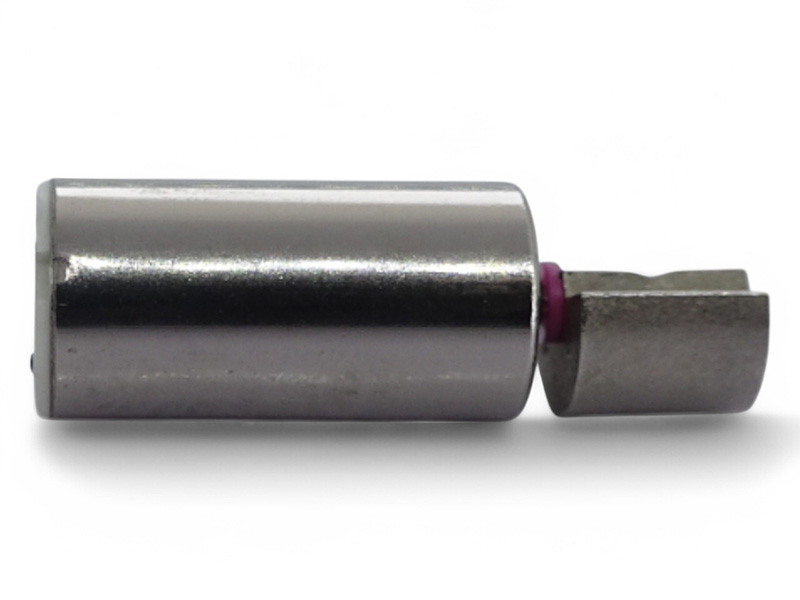

A6-120-02 (Vibration type)
| Part number | Diameter | Length | Voltage | No-load speed | No-load current | Stall current | Armature resistance | Stall torque | Mechanical noise | Amount of vibration |
| ［mm］ | ［mm］ | ［V］ | ［rpm］ | ［mA］ | ［mA］ | ［Ω］ | ［mNm］ | ［dB］ | ［m/s^2］ | |
| A6-120-02 （Vibration type） |
φ6 | 12 | 1.3 | 6,000 | 45 | 135 | 9.60 | 0.125 | 35 | 7.5 |
Download
-
DimensionsDownload
