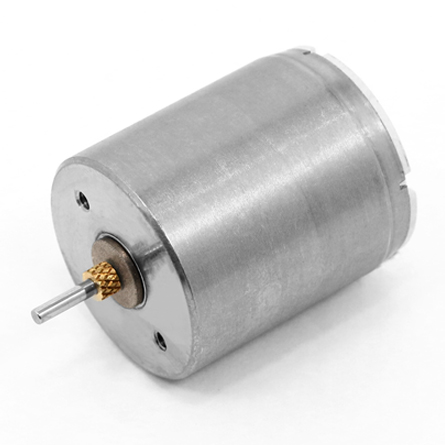

A22-253
Available items
A22-253-01
| Part number | Diameter | Length | Voltage | No-load speed | No-load current | Stall current | Armature resistance | Stall torque | Max. efficiency | Max. output |
| ［mm］ | ［mm］ | ［V］ | ［rpm］ | ［mA］ | ［mA］ | ［Ω］ | ［mNm］ | ［％］ | ［W］ | |
| A22-253-01 | φ22 | 25.3 | 6.0 | 6,000 | 15 | 896 | 6.70 | 8.27 | 75.8 | 1.30 |
