Coreless motors - A12-215

List of products in the same category

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
A12-215-01	12.4	21.5	6.0	-	5820	4	211	1.99	74.3	0.304
Customizable Items	Lead pin Lead wire Grounding terminal Gear head

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
A12-215-02	12.4	21.5	4.8	-	17000	30	2341	6.15	78.6	2.74
Customizable Items	Lead pin Lead wire Grounding terminal Gear head

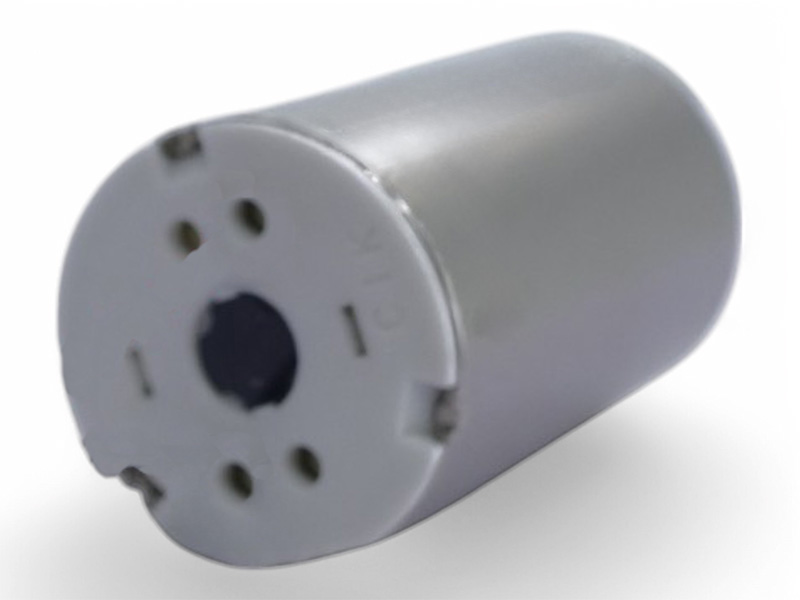

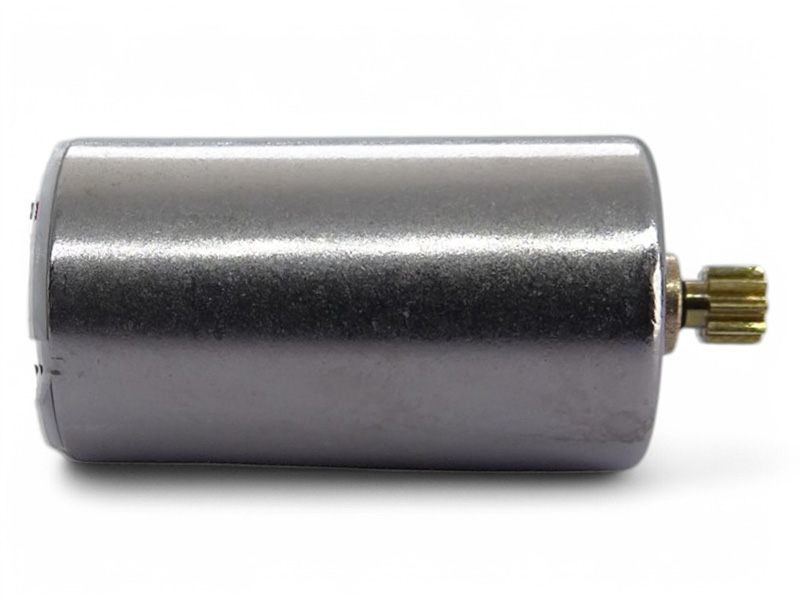

A12-215-01 Product Details

Click to enlarge

Product Specifications

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
A12-215-01	12.4	21.5	6.0	-	5820	4	211	1.99	74.3	0.304

Customizable Items

Lead pin Lead wire Grounding terminal Gear head

Outline Drawing / Characteristic Diagram / CAD Data Download

Outline Drawing Characteristic Diagram CAD Data

Catalog Download

◀ For those who want to see catalog materials including this product

Contact

◀ For those who want to inquire directly about product details, samples, etc.

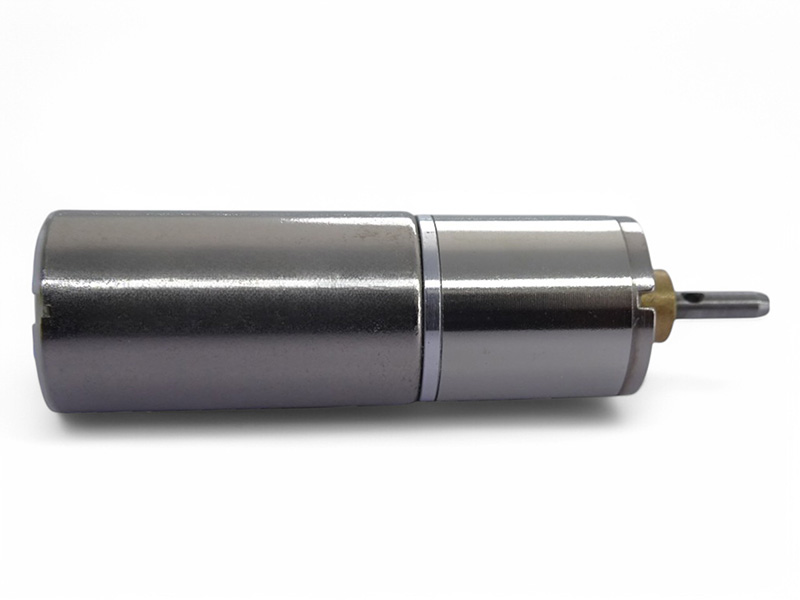

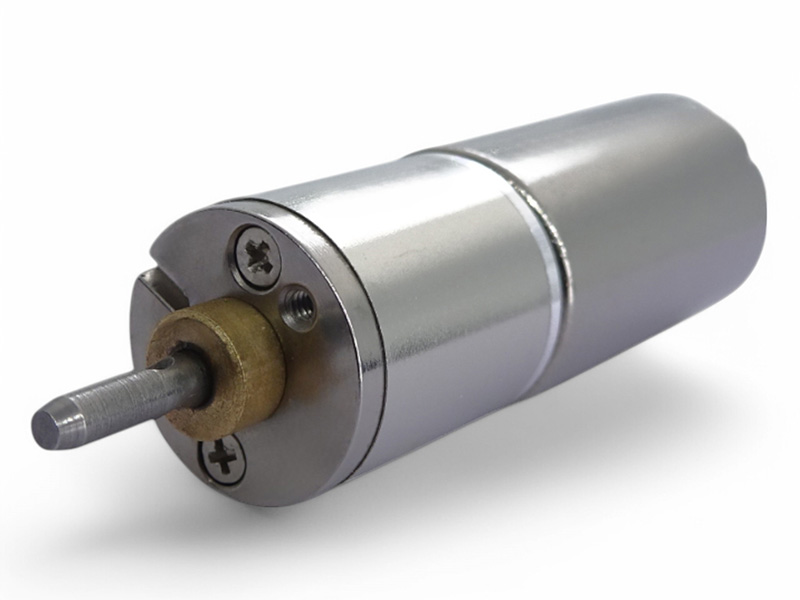

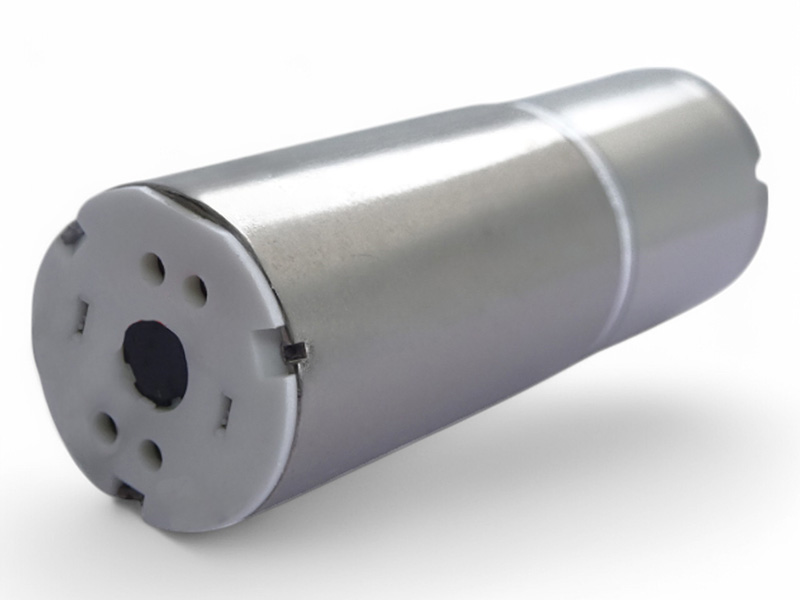

A12-215-02 Product Details

Click to enlarge

Product Specifications

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
A12-215-02	12.4	21.5	4.8	-	17000	30	2341	6.15	78.6	2.74

Customizable Items

Lead pin Lead wire Grounding terminal Gear head

Outline Drawing / Characteristic Diagram / CAD Data Download

Outline Drawing Characteristic Diagram CAD Data

Catalog Download

◀ For those who want to see catalog materials including this product

Contact

◀ For those who want to inquire directly about product details, samples, etc.

Coreless motors Product List

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
A4-102-01	4	10.2	1.0	-	16750	14.2	42	0.0103	17.3	0.00453
Customizable Items	Lead wire Lead pin

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ CAD↓
A4-102-02 (Vibration type)	4	10.2	1.3	-	9500	-	-	0.0121	-	-
Customizable Items	Lead wire Lead pin

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
A12-155-01	12	15.5	4.8	-	19400	40	747	1.58	59.1	0.803
Customizable Items	Lead pin Lead wire Grounding terminal Gear head

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
A6-120-01	6	12.0	1.3	-	9000	20	93	0.0789	28.7	0.0186
Customizable Items	Lead wire

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
A12-181-01	12	18.1	9.0	-	8860	5	138	1.24	65.6	0.289
Customizable Items	Lead pin Lead wire Grounding terminal Gear head

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ CAD↓
A6-120-02 (Vibration type)	6	12.0	1.3	-	6000	-	-	0.125	-	-
Customizable Items	Lead wire

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
A12-215-01	12.4	21.5	6.0	-	5820	4	211	1.99	74.3	0.304
Customizable Items	Lead pin Lead wire Grounding terminal Gear head

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
A12-215-02	12.4	21.5	4.8	-	17000	30	2341	6.15	78.6	2.74
Customizable Items	Lead pin Lead wire Grounding terminal Gear head

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
A12-248-01	12.4	24.8	7.4	-	16800	15	3083	12.8	86.5	5.65
Customizable Items	Lead pin Lead wire Grounding terminal Gear head

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
A12-308-01	12.4	30.8	11.1	-	18000	25	3868	22.5	84.6	10.6
Customizable Items	Lead pin Lead wire Grounding terminal Gear head

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
A16-192-01	16	19.2	5.0	-	4900	9	230	2.07	64.4	0.266
Customizable Items	Lead pin Lead wire Grounding terminal Gear head

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
A16-237-01	16	23.7	6.0	-	3220	5	238	4.06	73.1	0.342
Customizable Items	Lead pin Lead wire Grounding terminal Gear head

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
A17-158-01	17.4	15.8	4.8	-	19200	40	2775	6.43	77.4	3.24
Customizable Items	Lead pin Lead wire Grounding terminal

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
A17-184-01	17.4	18.4	4.5	-	16350	30	3570	9.23	82.5	3.95
Customizable Items	Lead pin Lead wire Grounding terminal

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
A17-238-01	17.4	23.8	12.0	-	16500	15	2670	18.3	85.6	7.92
Customizable Items	Lead pin Lead wire Grounding terminal

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
A22-253-01	22	25.3	6.0	-	6000	15	896	8.27	75.8	1.30
Customizable Items	Lead pin Lead wire Grounding terminal Gear head Ball bearing

Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	Rotation Speed [r/m]	Current [mA]	Current [mA]	Torque [mN･m]	Efficiency [%]	Output [W]
Model Name	Outer Diameter [mm]	Length [mm]	Applied Voltage [V]	Terminal resistance [Ω]	No Load		Startup		Max		Product Details ▶	Outline Drawing↓ Characteristic Diagram↓ CAD↓
A22-303-01	22	30.3	24.0	-	12000	25	1702	31.6	77.2	9.92
Customizable Items	Lead pin Lead wire Grounding terminal Gear head Ball bearing
