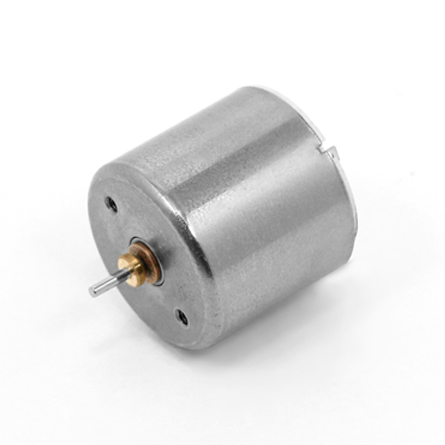

A17-158

Available items

  • Lead pin
  • Lead wire
  • Grounding terminal
A17-158
A17-158
A17-158
A17-158

A17-158-01

Part number Diameter Length Voltage No-load speed No-load current Stall current Armature resistance Stall torque Max. efficiency Max. output
  ［mm］ ［mm］ ［V］ ［rpm］ ［mA］ ［mA］ ［Ω］ ［mNm］ ［％］ ［W］
A17-158-01 φ17.4 15.8 4.8 19,200 40 2,775 1.73 6.43 77.4 3.24
